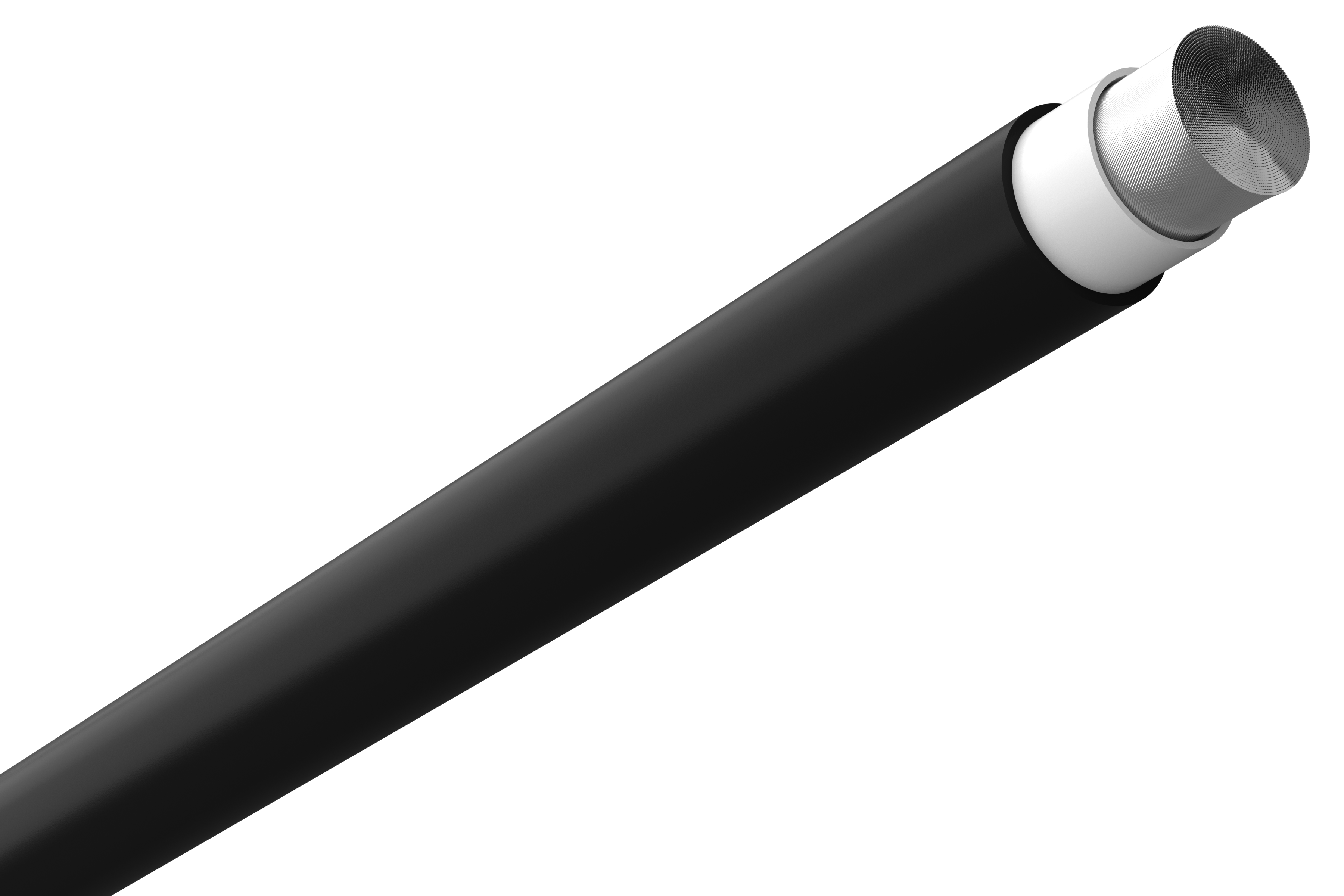

ALU Q-Flex

Flexible aluminium, double insulated, halogen free, single core conductor. Designed for 0,6/1kV AC and 1,5kV DC. Suitable for installation in battery storage and charging stations outdoors. Suitable for direct burial. Alu-Q-Flex is flexible, lightweight, and easy to handle. When used with the Elpress crimping system Dual 5, it ensures a safe and reliable connection

Produced in: Sweden

Request Quotation

Details

90°C max
90°C max
Class 5
Class 5
Direct burial
Direct burial
Flame-retardant
Flame-retardant
Halogen-free
Halogen-free

Properties

Min. temperature 25 °C
Max temperature 90 °C
Voltage rating (DC) 0,9/1,5 (1,8)kv kV
AC Voltage rating U₀/U (Uₘ) 0,6/1 (1,2)kv kV
CPR class Dca

Standards

Conductor IEC 60228 Class 5
Flame retardant EN 50575:2014+A1:2016
Halogen free IEC 60754-1
Smoke density IEC 61034-1
Construction IEC 60502-1
Material EN 50363-8
Halogen free IEC 60754-2
Smoke density IEC 61034-2

Construction

Bending radius - Minimum 4 XOD
Conductor Flexible Aluminium
Insulation XHFFR
Outer sheath HFFR
Color Black (or customer´s choice)
Labeling example ALU Q-Flex [size] 0,6/1kV YY/WW meter marking

Product Articles

Name Cross section Outer diameter Total weight           DoP EPD
ALU Q-Flex 1X50 50 mm² 14.4 mm 267 kg/km
ALU Q-Flex 1X70 70 mm² 17.7 mm 380 kg/km
ALU Q-Flex 1X95 95 mm² 19.2 mm 470 kg/km
ALU Q-Flex 1X120 120 mm² 20.5 mm 570 kg/km
ALU Q-Flex 1X150 150 mm² 23.7 mm 720 kg/km
ALU Q-Flex 1X185 185 mm² 26 mm 880 kg/km
ALU Q-Flex 1X240 240 mm² 28.5 mm 1080 kg/km
ALU Q-Flex 1X300 300 mm² 30.9 mm 1290 kg/km
