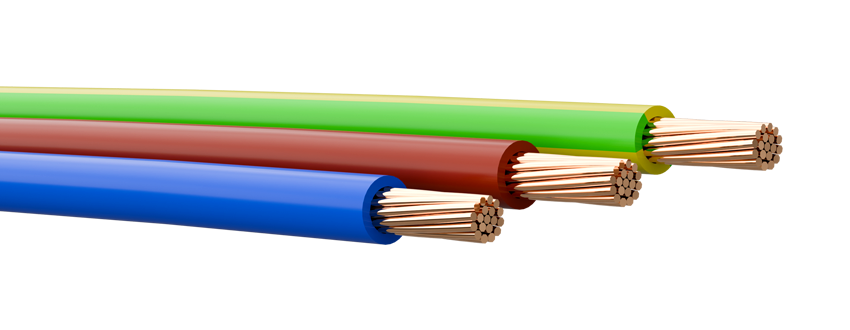

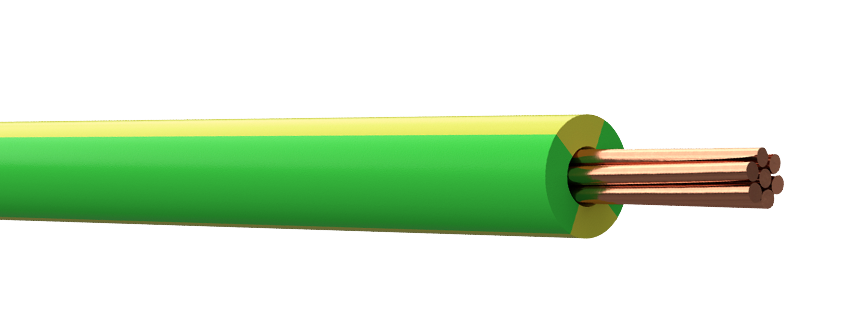

H05V2-R (FK90)
Industry

H05V2-R (FK90)

H05V2-R is a 90°C PVC insulated stranded conductor. Suitable for fixed installation. To be installed in conduit or duct systems, or as connection wire to be used in switch cabinets and similar applications.

Produced in: Sweden

Request Quotation

Details

-30°C min
-30°C min
90°C max
90°C max
Flame-retardant
Flame-retardant

Properties

Min. temperature -30 °C
Max temperature 90 °C
Conductor temperature 90 °C
AC Voltage rating U₀/U 300/500V kV
CPR class Eca

Standards

Flame retardant EN 50575:2014+A1:2016
Conductor IEC 60228 Class 2
Flame retardant IEC 60332-1-2
Construction EN 50525-2-31

Construction

Bending radius - Final mount fixed 4 XOD
Conductor Class 2 Bare or tinned
Insulation PVC
Color According to EN 50525-1
Labeling example AMO H05V2-R

Product Articles

Name Cross section Outer diameter Total weight           DoP EPD
H05V2-R 0,5 0 mm² 2.2 mm 9 kg/km
H05V2-R 0,75 0 mm² 2.3 mm 11 kg/km
H05V2-R 1 0 mm² 2.5 mm 14 kg/km
