FQQ
Installation

FQQ

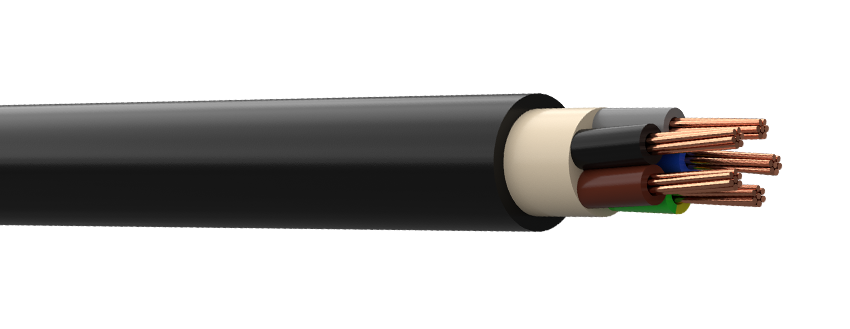

FQQ is a halogen-free installation cable designed for safe and reliable fixed installations both indoors and outdoors. It is suitable for open or concealed installation in conduits and is commonly used in residential, commercial, and industrial environments. However, it is not intended for direct burial in soil or for underwater applications. Its halogen-free construction enhances fire safety by eliminating the release of corrosive gases in the event of fire, protecting both people and equipment. To ensure long-term performance, the core insulation must be protected from direct UV exposure. Appropriate precautions should be taken to prevent damage from sunlight and maintain durability over time. FQQ is a dependable choice for electricians seeking quality, safety, and sustainable installation solutions.

Produced in: Sweden

Details

-25°C min
-25°C min
70°C max
70°C max
Halogen-free
Halogen-free
LSHF
LSHF

Properties

Min. temperature -25 °C
Max temperature 70 °C
AC Voltage rating U₀/U 300/500V kV

Standards

Flame retardant EN 50575:2014+A1:2016
Conductor IEC 60228 Class 2
Construction SS 424 02 19-5

Approvals

CE CE
CPR CPR

Product Articles

Name Outer diameter Number of cores Total weight           DoP EPD
FQQ 2X1,5 9.5 mm 2 0 kg/km             Open
FQQ 3G1,5 9.5 mm 3 0 kg/km             Open
FQQ 4G1,5 10.5 mm 4 0 kg/km             Open
FQQ 5G1,5 11.6 mm 5 0 kg/km             Open
