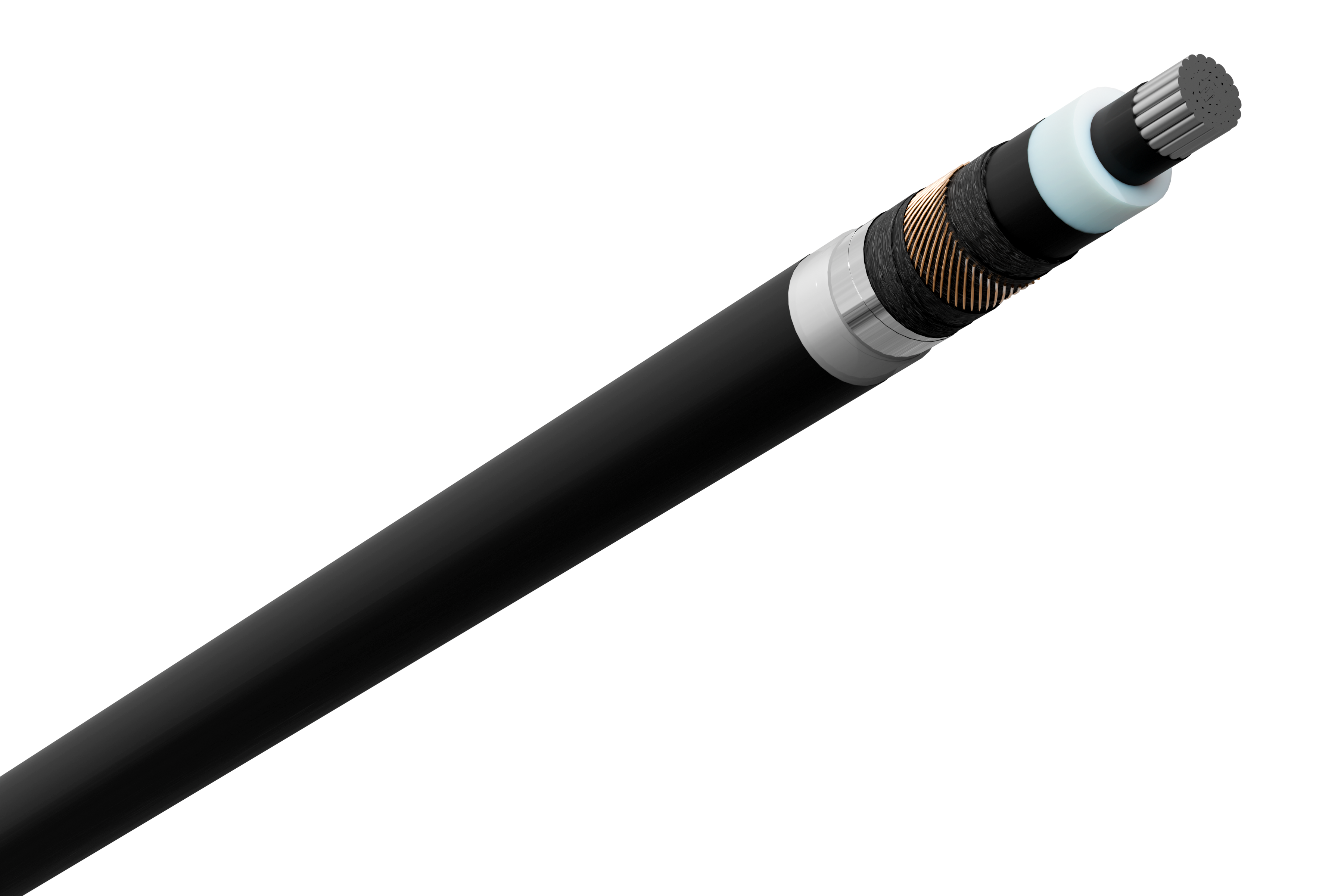

AXLJ-F TTCL

The cable is both radial and logitudinally water blocked. The outer conductive layer is fixed. Screen has concentric copper wires and logitudinally applied aluminium tape. The jacket has an outer semiconductive layer to enable testing after installation. Amokabel’s medium voltage cables are single-core 12–72.5 kV, ranging from 1x95 mm² to 1x1200 mm². The construction includes a conductor, insulation system, screening, and an outer sheath for mechanical protection and resistance to moisture and water. With our medium voltage cables, you get a combination of sustainable production, documented quality, and flexible delivery capacity – all to ensure the success of your projects. The Amokabel Guarantee – We stand behind the final product and its environmental documentation. A flexible and competitive solution.

Produced in: Sweden

Request Quotation

Details

-20°C min

90°C max

Direct burial

Longitudinally waterproof

Weather-resistant

Properties

Min. temperature	-20 °C
Max temperature	90 °C

Standards

Conductor

IEC 60228 Class 2

Construction

Bending radius - Minimum	10 XOD
Conductor	Stranded, round,compacted aluminium acc. to IEC 60228 class2, longitudinal water sealed
Insulation	XLPE
Outer sheath	MDPE UV resistant with semi-conductive skin
Color	BLACK
Labeling example	AXLJ-TTCL TSLF 1x240/35 6/10(12)kV, YY-MM, AMOKABEL-K
Packaging	DRUM
